PS-5026B

Portable Wafer Probe Station

The PS-5026B is a rugged portable wafer probing solution which has been designed for high reliability, compact size and minimum cost.

Features

  • Portable manual wafer probe station 500 mm x 500 mm x 500 mm
  • Electrically isolated chuck with vacuum interface and wafer backside potential connector
  • Trinocular stereo zoom microscope with 80 times magnification and camera interface for chipfotos
  • Ultra long-life 20000 lx white LED ring light
  • Including 5 MP USB video camera
  • High reliability
  • Low cost

Download: Product Datasheet PS-5026B

DSC_5860s1

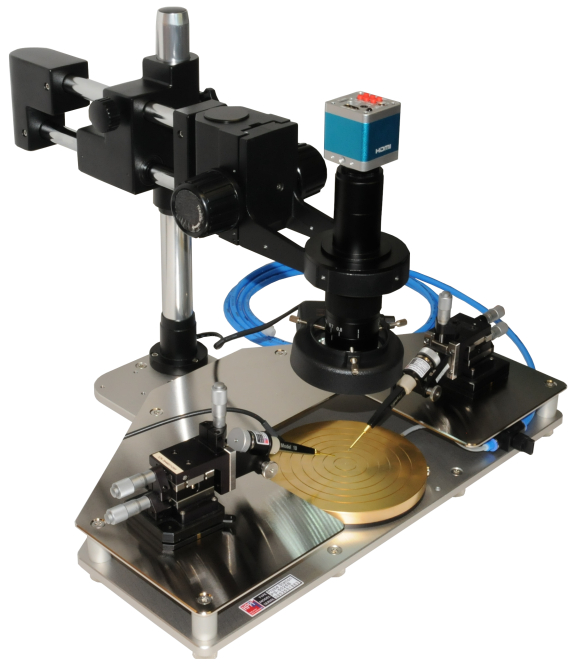

Figure 1: PS-5026B portable wafer probe station with 5 MP USB video camera. Optional: precision Picoprobe micropositioner Kit PHD-3001A, two micropositioners.
