RTE-24A

Rise Time Extender

Features

  • Rise time extender with pulse shaping for transmission line pulse (TLP) and common-mode- transfer-immunity (CMTI) pulse generators
  • Up to 24 software programmable rise times in the range of 100 ps to 200 ns (customizable)
  • ±3 kV pulse voltage at 50 Ω
  • Software driver for remote control and Graphical User Interface (GUI)
  • Industrial isolated and EMI/ESD protected USB control interface

Download: Product Datasheet RTE-24A

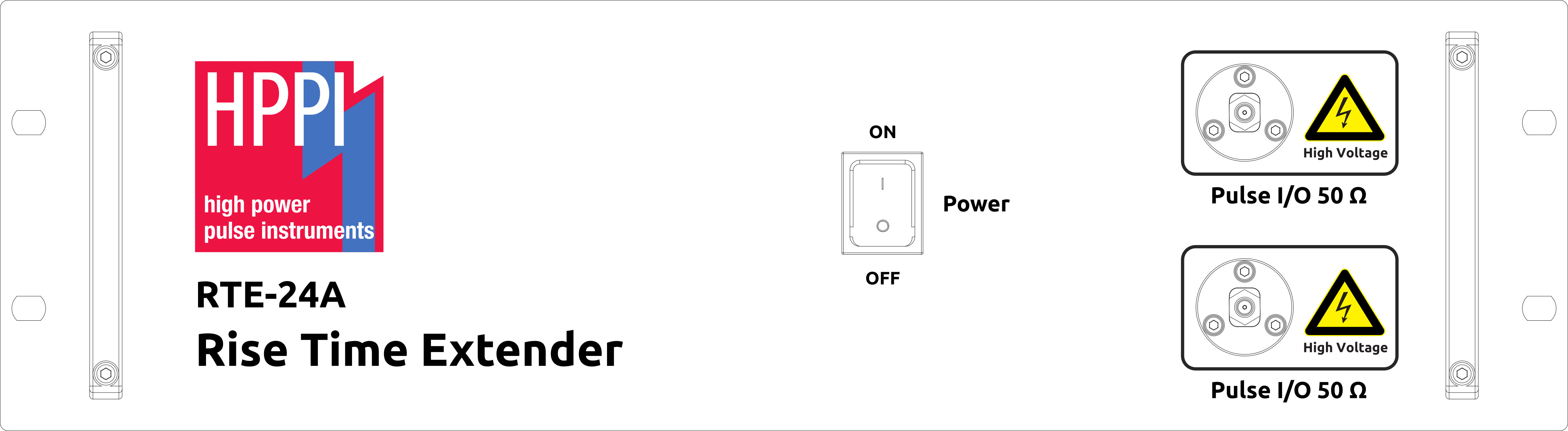

Front Side View

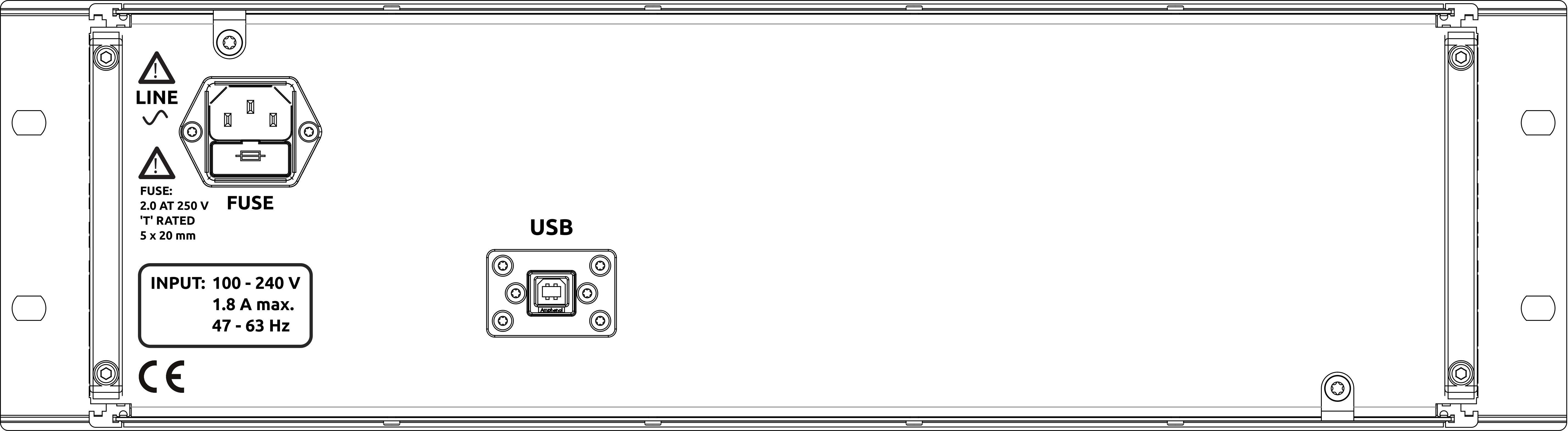

Rear Side View
