320 mm Automated Test System
The ATS-8300G test system is a 320 mm x 320 mm fully automated probing solution for HBM, TLP, VF-TLP, HMM and CC-TLP on package- and wafer-level.
Features

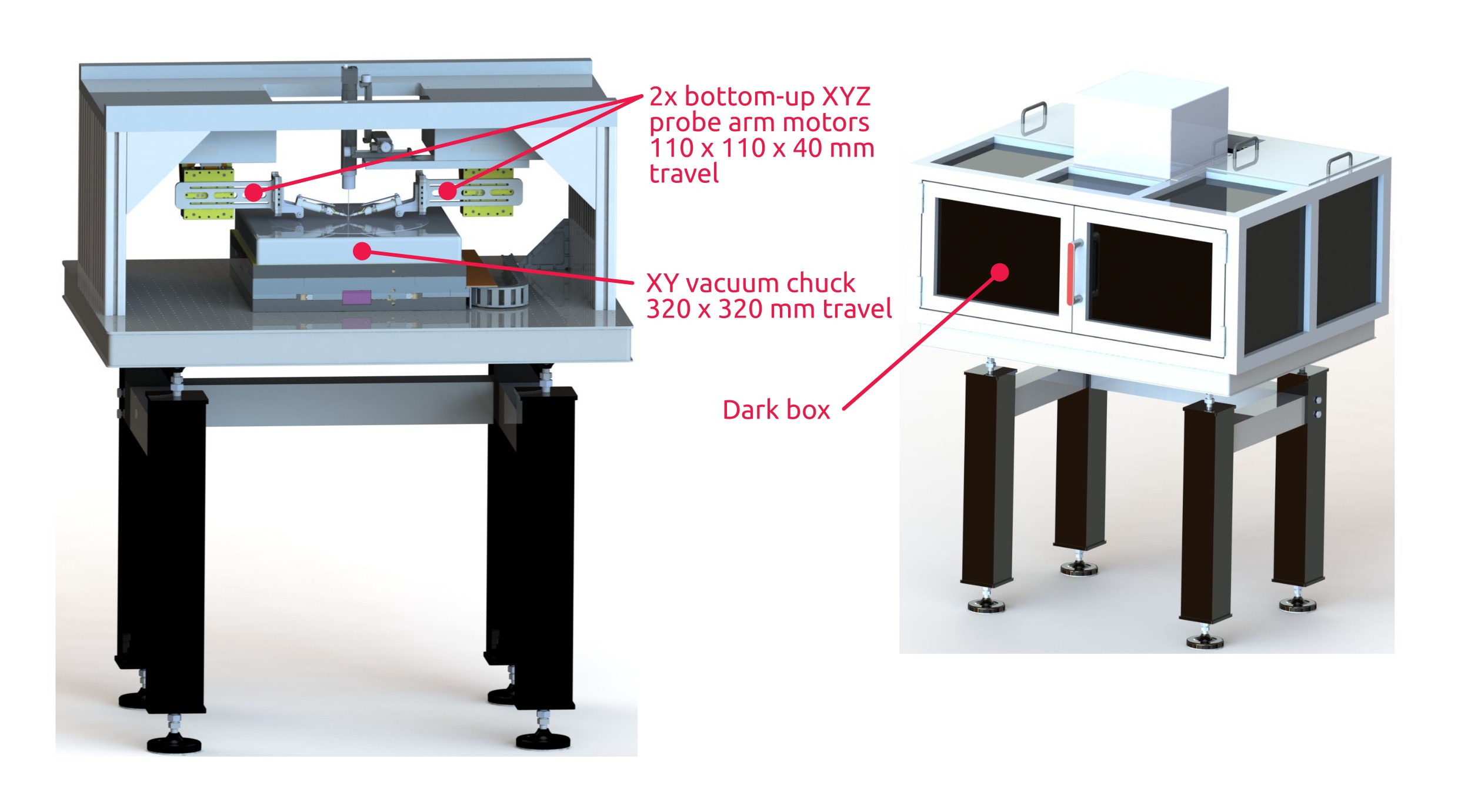

- fully automated 320 mm probe station for HBM, TLP, VF-TLP, HMM and CC-TLP on package-, system (PCB) and wafer-level
- 2x bottom-up XYZ probe arm motors (left and right side), 110 mm x 110 mm x 40 mm travel
- XY microporous vacuum chuck, 320 mm x 320 mm travel
- flexible pitch 2-pin or fixed pitch 4-pin (Kelvin-type) probe arms
- 2x ultra-fast needle force touch-down sensors at [mN] force precision
- automatic probearm and needle crash avoidance system
- moving target camera
- dark box
- interlock safety shut-down
- compact size: 1 m (width) x 0.9 m (depth) x 1.5 m (height)
- 200 kg weight
- automation software remote control including:
- probe needle force sensing including probe arm collision avoidance
- physical alignments (3D, multi-device)
- automatic BGA/QFP/DIL/etc pin map generator
- test definition and setup (e.g. ANSI/ESDA/JEDEC JS-001 table 2A, 2B)
- real time task view
- moving camera setup
- probe setup
- motion controller, pulse generator, SMU(s) setup and operation
- measurement data analysis and storage
Downloads
| Product Data Sheet ATS-8300G | |
| Product Video ATS-8300G (Direct Video Download to Avoid YouTube) | ATS8300G.mp4 |
| Product Video ATS-8300G (Youtube Link) | https://youtu.be/E0FdOpEva1E |
System Components
| Item | Sub-Item | Qty. | Description | Model Number |
| 1 | 1.0 | 1 | Automated Test System | ATS-8300G |
| 1.1 | 1 | 320 mm x 230 mm X/Y-travel microporous ceramic compound vacuum chuck, linear motor, linear scale encoder | ||
| 1.2 | 2 | 110 mm x 110 mm x 40 mm X/Y/Z probe-arm bottom-up motors including linear scale encoders, probearm fixture platform, touch-down probe needle force sensor | ||
| 1.3 | 1 | Moving target video camera system | ||
| 1.4 | 1 | Motion controller | ||
| 1.5 | 1 | Honeycomb breadboard 1000 mm x 800 mm x 70 mm | ||
| 1.6 | 1 | Accessories fixture kit | ||
| 1.7 | 2 | TPA-GFG probe arm kit | ||
| 1.8 | 1 | Table support | ||
| 1.9 | 1 | Interlock safety shut-down | ||
| 1.10 | 1 | Dark box | ||
| 1.11 | 1 | Vacuum pump (optional)e | ||
| 1.12 | 1 | HPPI automation software including collision avoidance |
Dimensions [mm]
