CAL-KIT-200-A1

TLP Calibration Kit

Features

    TLP calibration kit for package- or PCB-level measurements using the adaptor PBA-3002A
  • 8 reference resistors in the range of 0.1, 0.2, 0.5, 1, 5, 10, 50 and 100 Ω for calibration of the current measurement channel
  • 5 reference Z-diodes in the range of 5, 7, 10, 18 and 33 V for the calibration of the voltage measurement channel.
  • 1 silicon transient voltage suppressor (TVS) diode for reference measurement of the calibrated TLP/VF-TLP system
  • 4 terminals per reference device for pulse sense and optional ground sense calibration
  • 1 short-circuit teststructure
  • Rugged protective case
  • Calibration datasheet
  • Size 76.8 mm x 120 mm x 20 mm

Download: Product Datasheet CAL-KIT-200-A1C

TLP Calibration Kit CAL-KIT-200-A1

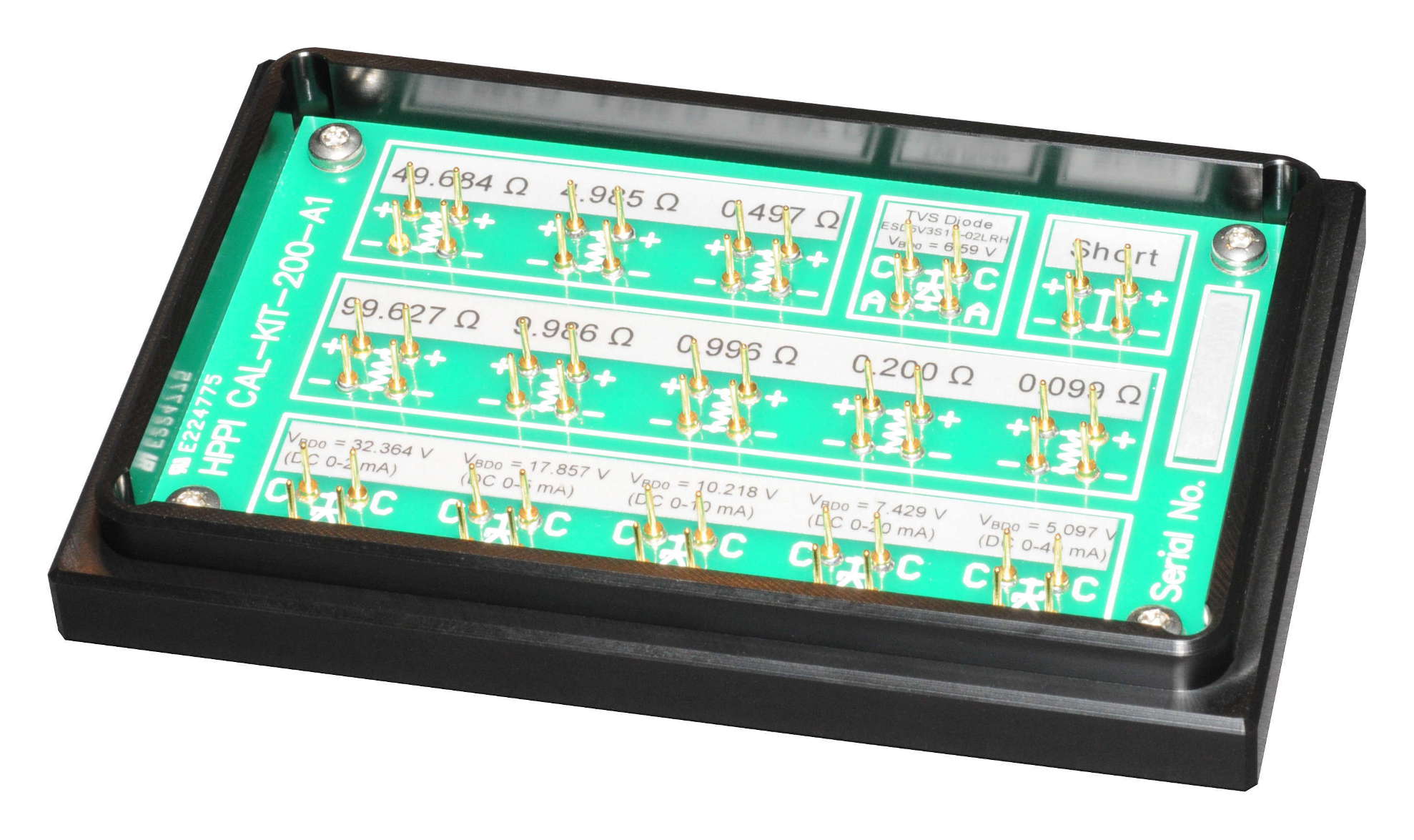

DSC_4464A3
