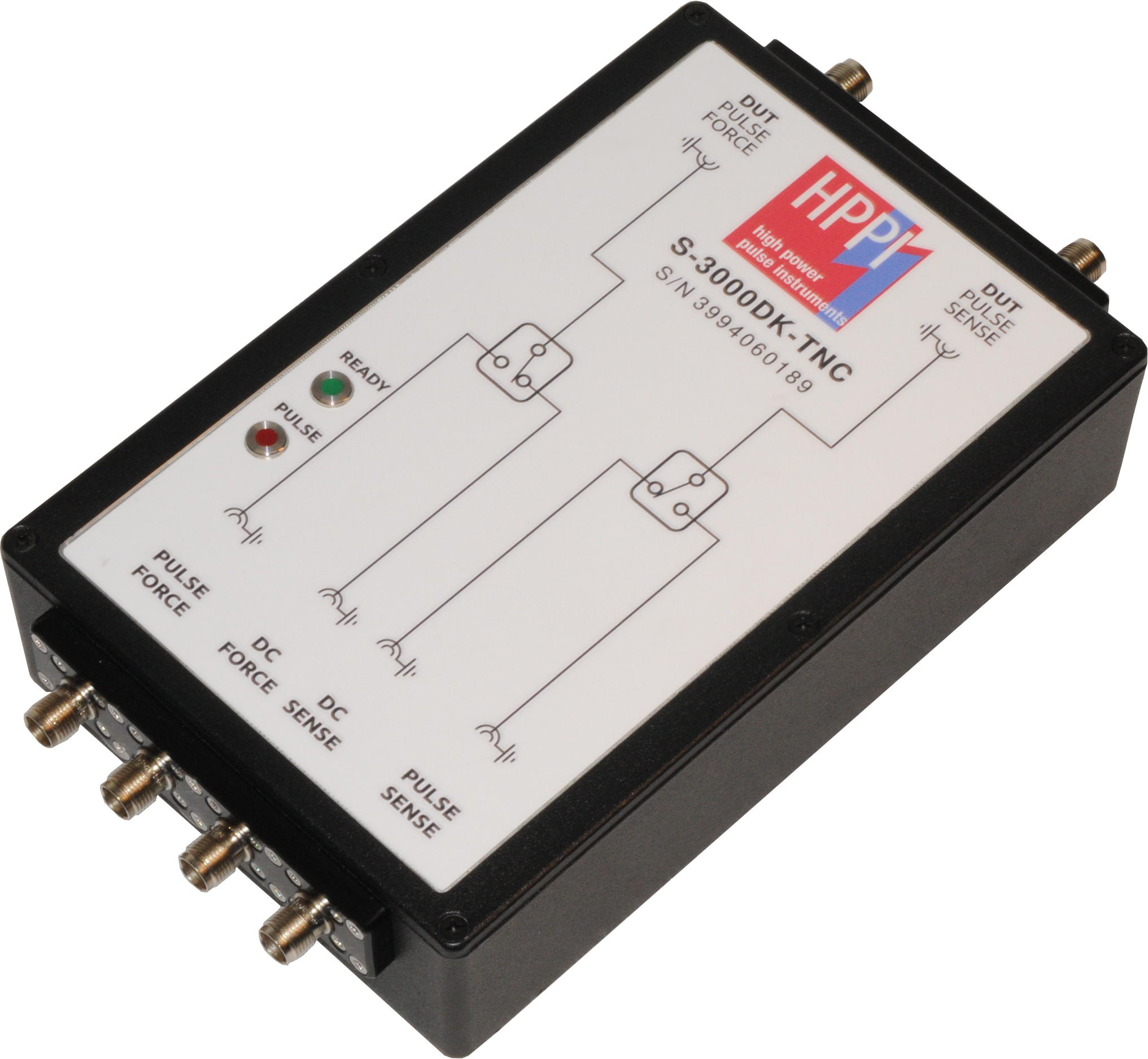

4 kV, 5 GHz DUT Switch For TLP-16010A/C Pulser

Features

• DUT switch for 160 A TLP-16010A/C systems at 4 kV pulse voltage into 50 Ohm
• 2 synchronous switched single pole, double throw (SP2T) channels
• Integrated sheath wave (common mode) suppression
• DC – 5 GHz bandwidth
• 4 kV nominal pulse voltage
• Designed for high performance VF-TLP/TLP/HMM
• Suitable for “quasi”-Kelvin DC test
• 6 TNC ports
• 12 V, 0.6A power consumption
• Size 260.1 mm x 146 mm x 56.1 mm
• 2 x Ø4 mm dowel holes and 2 x M4 threads on bottom for system integration
• Extremely low triboelectricity generation
• Improved reliability for high system pulse counts

Download: Product Datasheet S-3000DK-TNC
