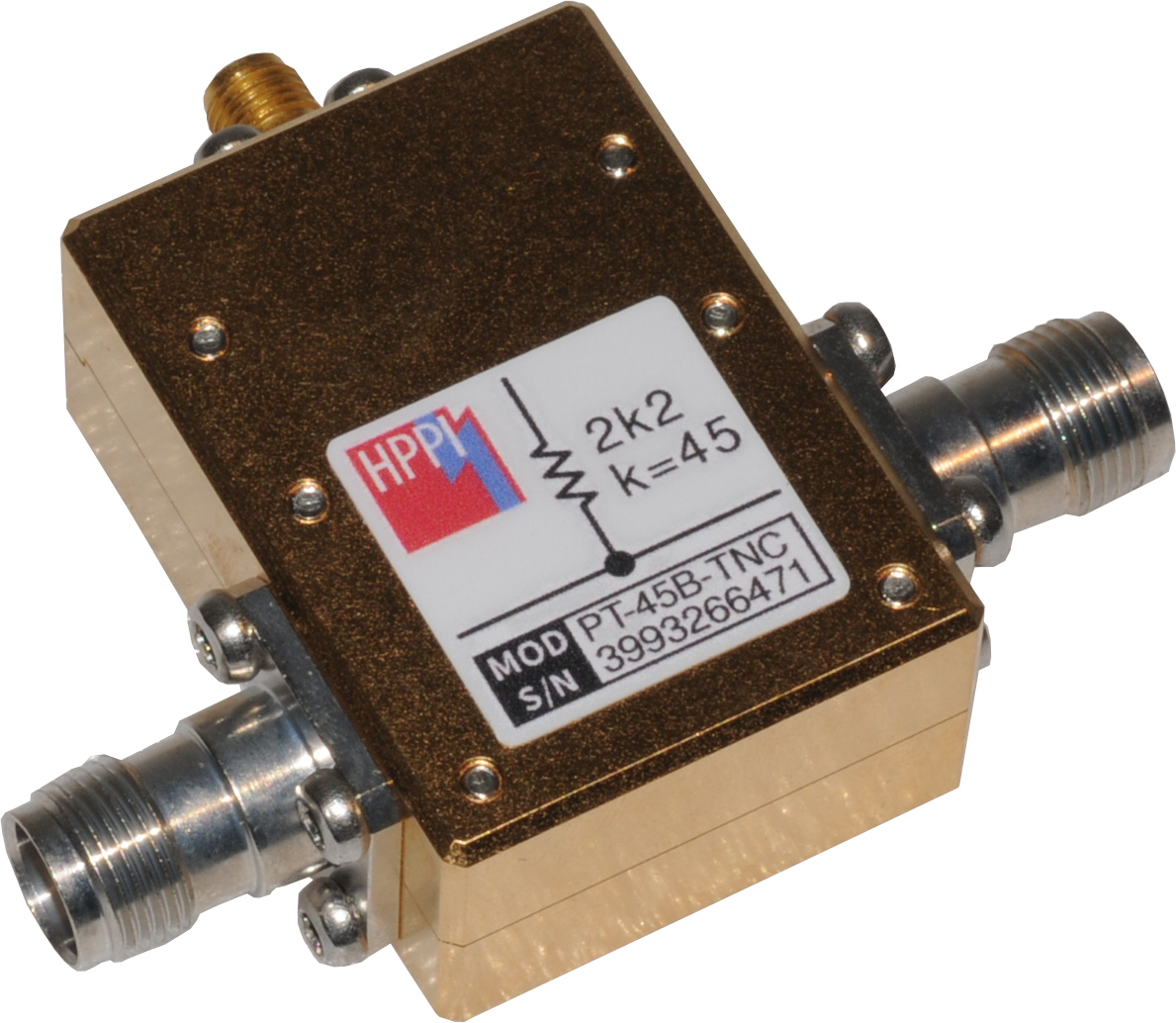

4 kV, 50 Ω SMA Wideband Pick-Off Tee

Features

• Wideband pick-off tee for TLP/VF-TLP measurements
• General purpose voltage probe 45:1
• Nominal pick-off transfer coefficient −33 dB
• DC to 3 GHz bandwidth (S31 ±2 dB)
• Insertion loss typ. 0.8 dB at 3 GHz
• max. 4 kV peak pulse voltage (1.6 µs pulse width)
• max. 80 V DC (port 1, port 2 to port 3)

Download: Product Datasheet PT-45B-TNC
