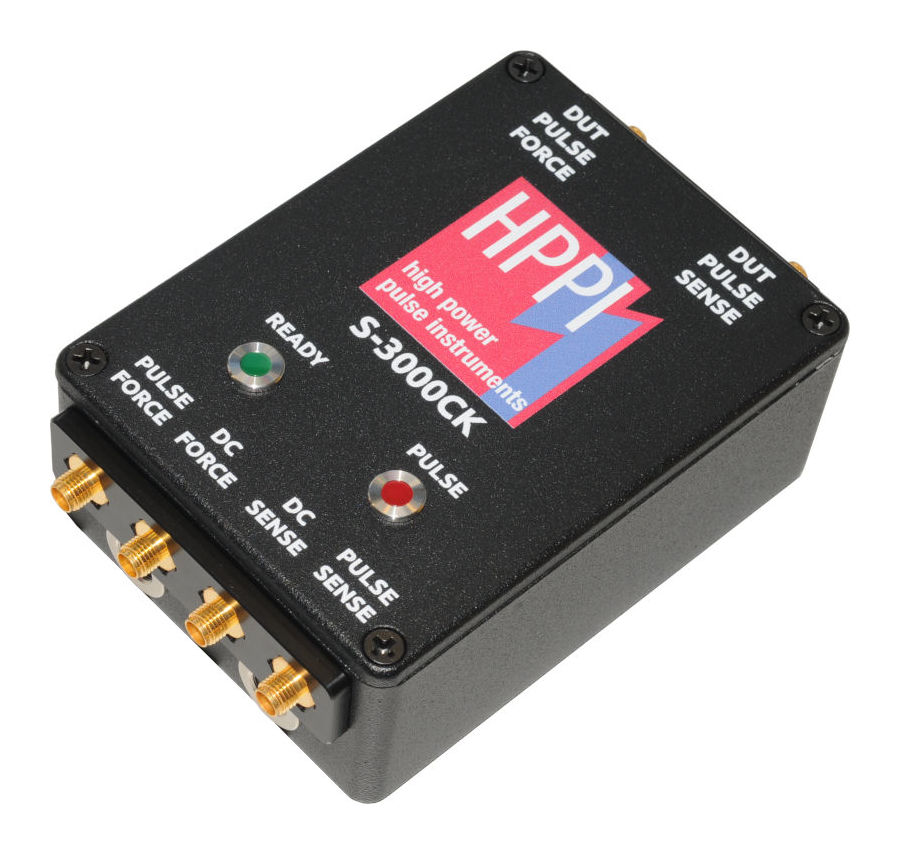

S-3000CK

2 kV, 18 GHz DUT Switch For TLP-3010C, TLP-4010C, TLP/CMTI-8010A/C Pulser

Features

  • DUT switch for 30 A to 80 A, TLP-3010C, TLP-4010C and CMTI/TLP-8010A/C
  • 2 synchronous switched single pole, double throw (SP2T) channels
  • Integrated sheath wave (common mode) suppression
  • DC – 18 GHz bandwidth
  • 2 kV nominal pulse voltage
  • Designed for high performance VF-TLP/TLP/HMM
  • Suitable for “quasi”-Kelvin DC test
  • 6 SMA ports
  • 12 V, 550 mA power consumption
  • Size 129.1 mm x 82.4 mm x 45.5 mm
  • 2 x Ø4 mm dowel holes and 2 x M4 threads on bottom for system integration
  • Extremely low triboelectricity generation
  • Improved reliability for high system pulse counts

Download: Product Datasheet S-3000CK
