CAL-02A

TLP/VF-TLP Calibration Substrate

Features

  • High quality ceramic substrate for TLP/VF-TLP system wafer-level calibration using ground-signal (GS) RF probes
  • Probetip pitch range from 50 µm up to 3 mm
  • 9 reference resistors in the range of 0.1, 0.2, 0.5, 1, 5, 10, 50 and 100 Ω for calibration of the current measurement channel
  • 500 Ω resistor for calibration of 2-pin HBM testers
  • 7 reference Z-diodes in the range of 5, 7, 10, 18, 33, 68 and 120 V for calibration of the voltage measurement channel
  • 1 silicon transient voltage suppressor (TVS) diode for reference measurement of the calibrated TLP/VF-TLP system
  • 45 open-load and 45 short-circuit teststructures
  • 10 custom reference device locations
  • Rugged top layer metal gold coating
  • Size 30.67 mm x 29.33 mm
  • Protective case
  • Calibration datasheet

Download: Product Datasheet CAL-02A

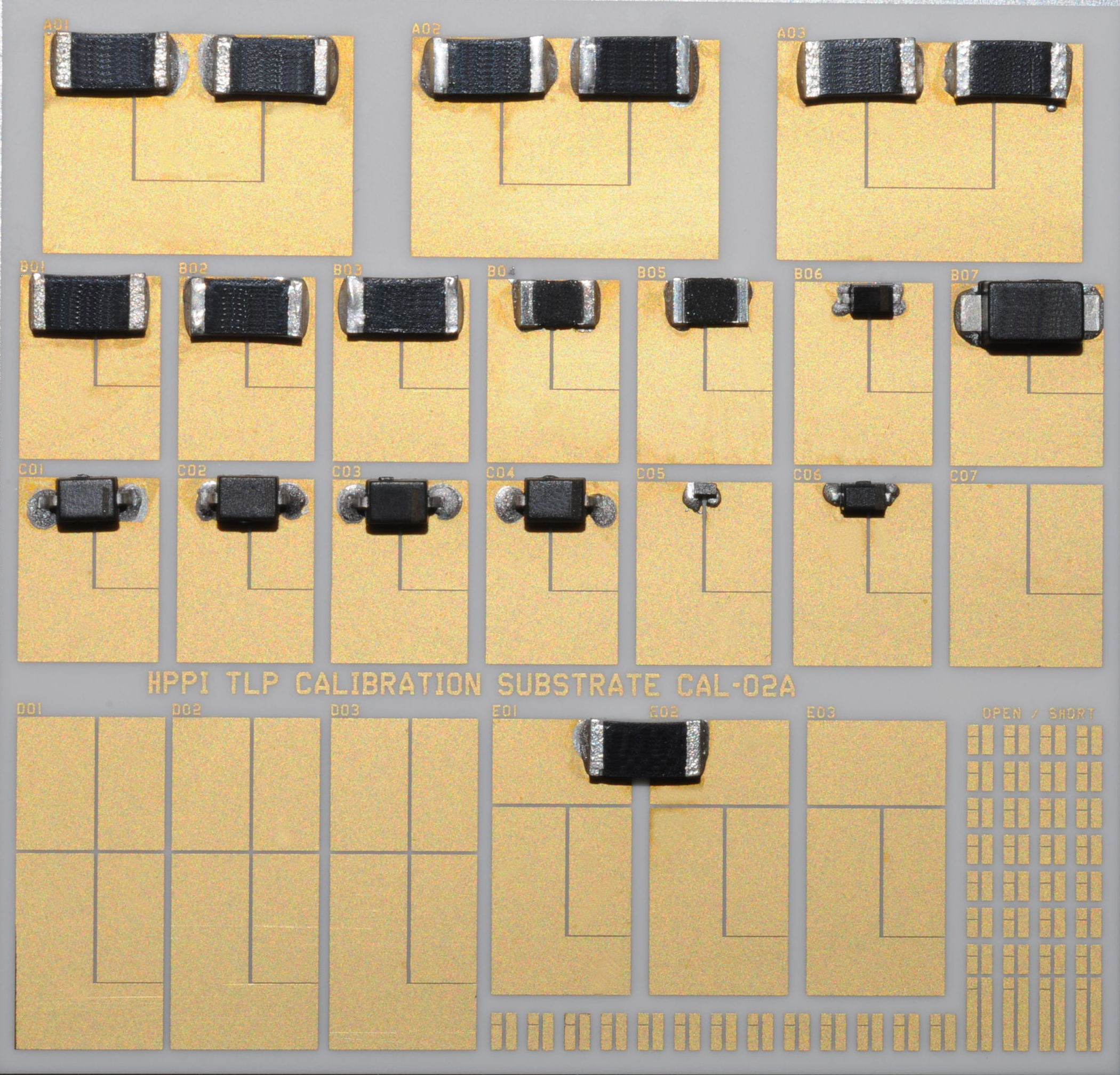

TLP/VF-TLP Ceramic Calibration Substrate (Size 30.67 mm x 29.33 mm)

Protective Case
