BT-10100A

30 kHz – 6 GHz, 10 A, 100 V High Current Bias Tee

Features

  • High current bias tee for biased DUT and recovery time measurements
  • Suitable for TLP, VF-TLP and HMM up to 80 A pulse current
  • 30 kHz – 6 GHz (−1dB) frequency response
  • DC input bias current: max. 2 A DC and max. 10 A pulsed at 100 ms pulse width and 1 % duty cycle
  • Up to 100 V bias voltage at DC input
  • Typ. 0.4 Ω DC resistance (port 3 to port 2)
  • 50 Ω pulse input and 50 Ω DC/pulse output
  • BNC DC input
  • Size 112 mm x 60.5 mm x 31 mm
  • Lab safety requirement: interlock operation above an operation voltage of 40 V needed to avoid life-endangerment risks

Download: Product Datasheet BT-10100A

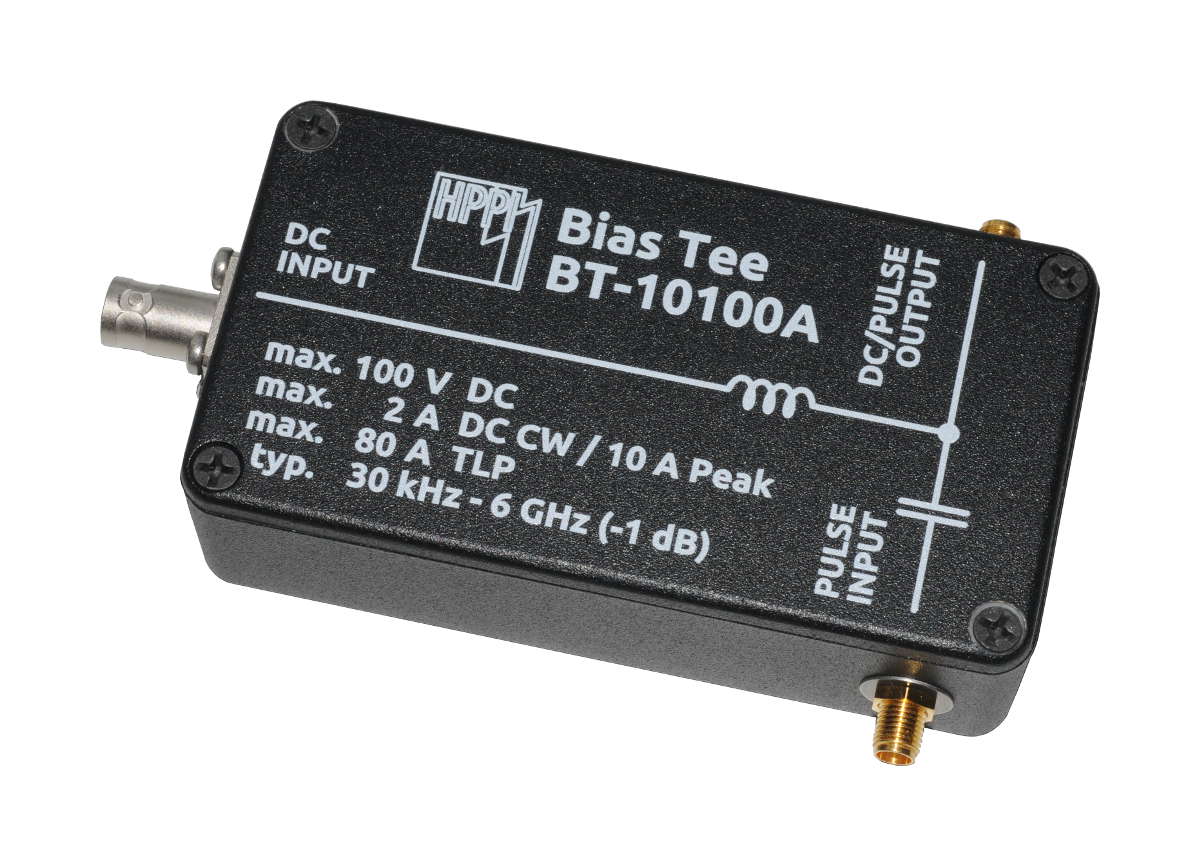

DSC_5163sr
